Last But Not Least:
Boundary Attention CalibratiON
for Multimodal KV Cache Compression

Tianhao Chen¹, Yuheng Wu¹, Kelu Yao⁴, Xiaogang Xu³, Xiaobin Hu^2,†, Dongman Lee^1,†

¹KAIST ²National University of Singapore ³The Chinese University of Hong Kong ⁴Zhejiang Laboratory
^†Corresponding authors

arXiv Code BibTeX

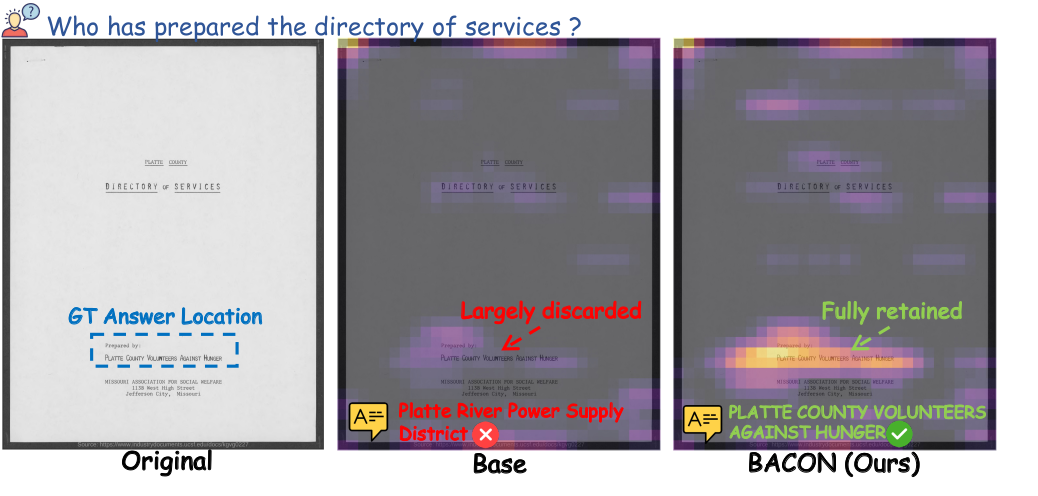

Visual importance estimation under low budget on SnapKV: Observation window vs. BACON

Under aggressive KV-cache budgets, observation-window attention dilutes sparse visual evidence and discards answer-critical tokens. BACON recovers this boundary-emergent evidence by calibrating the window score with last-query attention under intra-layer coherence and inter-layer persistence — without changing the compression operator or budget allocation.

Abstract

Multimodal Large Language Models (MLLMs) achieve strong vision-language reasoning, but long visual contexts enlarge the KV cache and increase decoding latency. Existing compression methods rely on observation-window attention for stable token-importance estimation, yet this aggregation can dilute sparse visual evidence and discard answer-critical tokens under aggressive compression. We identify last-query attention as a complementary source for recovering such evidence, but its answer-irrelevant signals can mislead retention.

We propose BACON, a plug-and-play method that calibrates observation-window attention with last-query evidence and suppresses isolated noise via intra-layer coherence and inter-layer persistence. Across diverse benchmarks, models, budgets, and compression methods, BACON improves multimodal KV compression by 7.5% on average under the most aggressive budget, with gains up to 30.9%.

Motivation

Most attention-based KV cache compression methods rank cached tokens by an observation-window score — the average attention each cached token receives from the last few prompt queries. While this averaging stabilizes ranking, it can also obscure sparse but answer-critical visual evidence.

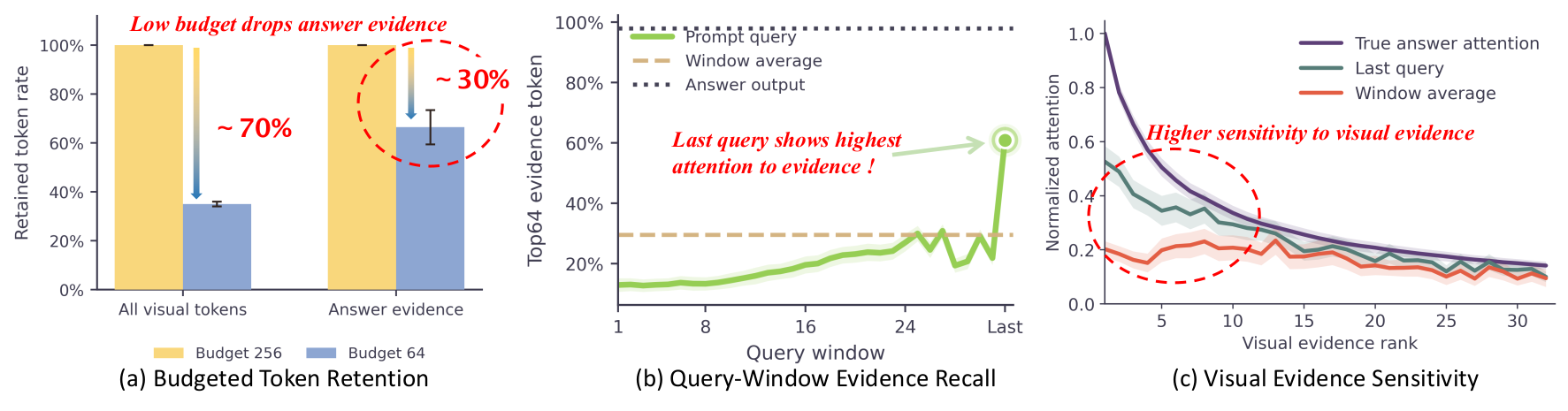

Observation window dilutes sparse visual evidence; last query recovers it

Observation-window aggregation can dilute sparse visual evidence; the last query recovers it. (a) Under aggressive compression, SparseMM discards answer-critical visual tokens. (b) The last prompt query is more sensitive than earlier queries to answer-relevant tokens. (c) Last-query attention better matches the answer's attention distribution over visual tokens than the window-averaged attention.

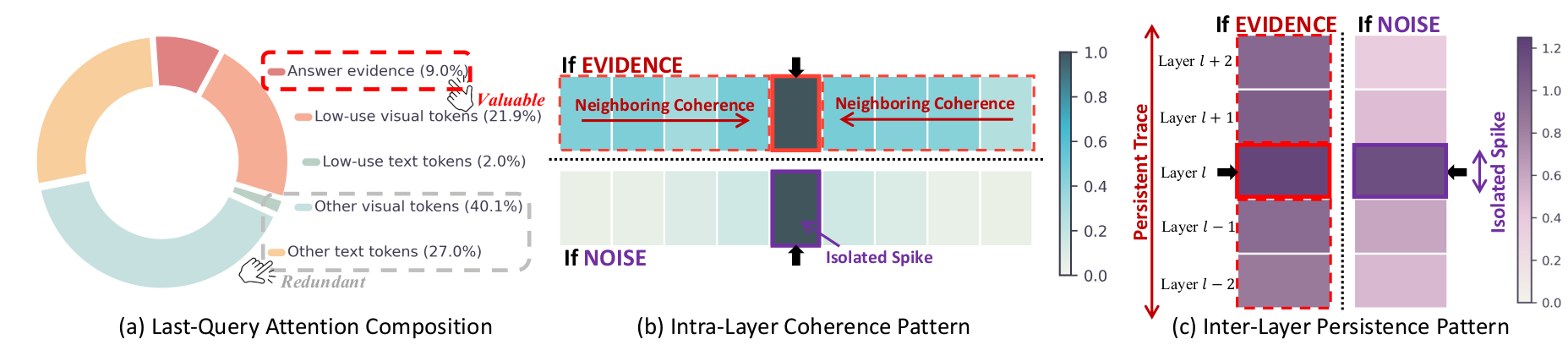

Why last-query attention needs calibration: intra-layer coherence and inter-layer persistence

Why last-query attention needs calibration. (a) Only ~9% of last-query high-attention tokens are true evidence; ~70% are answer-irrelevant noise. (b) True evidence appears as a coherent local region; noise often appears as an isolated spike. (c) True evidence remains salient across adjacent layers, while noise is less consistent across layers.

The last query is not least for token retention: it reveals visual evidence missed by observation-window aggregation, but this evidence should be calibrated against the window signal before guiding token retention.

Method

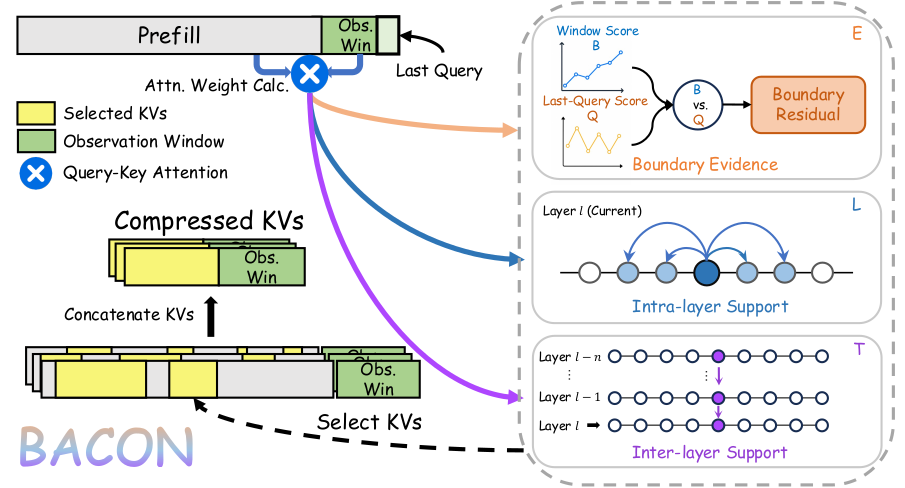

Overview of BACON. Boundary evidence is extracted from observation-window and last-query attention, calibrated with intra-layer coherence and inter-layer persistence, and combined into an evidence-aware score for head-wise KV cache compression.

Results

+7.5%

average gain under the most aggressive budget

+30.9%

peak improvement

+18.7

DocVQA, Qwen2-VL-7B, PyramidKV @ budget 64

+12.8

DocVQA, Qwen3-VL-30B-A3B, PyramidKV @ budget 64

Broad evaluation

Models: LLaVA-NeXT-Mistral-7B, InternVL3-8B, Qwen2-VL-7B-Instruct, Qwen3-VL-30B-A3B-Instruct, Mistral-7B-Instruct-v0.2, Llama-3.1-8B-Instruct.
Compression backbones: SnapKV, PyramidKV, AdaKV, SparseMM.
Tasks: image understanding (DocVQA, TextVQA, ChartQA, MMMU, TextCaps), video understanding (VATEX, NextQA), GUI grounding (ScreenSpot), and long-context text (LongBench).
Budgets: 256 / 128 / 64. BACON's gains are largest at the tightest budget, where sparse visual evidence is most vulnerable.

Efficiency

BACON only refines within-head token scores during prefill; the compressed cache size and the decoding procedure are unchanged. Accuracy gains come with negligible runtime and memory overhead over the original compression method.

Experiment Tables

Across image, video, GUI, and long-context text benchmarks — spanning 4 model families, 4 compression backbones, and 3 cache budgets — BACON consistently improves compressed inference.

Image Understanding — Qwen2-VL-7B

Δ over Base. Best result per column is in green bold. Full-KV upper bound: DocVQA 93.7, ChartQA 71.3, MMMU 49.9, TextCaps 1.473.

Method	Variant	DocVQA			TextVQA			ChartQA			MMMU			TextCaps
Method	Variant	256	128	64	256	128	64	256	128	64	256	128	64	256	128	64
SnapKV	Base	88.6	82.1	70.1	80.6	77.0	70.3	70.0	69.6	66.2	49.9	49.8	49.6	1.361	1.141	0.787
	+MixKV	91.8	83.9	70.9	82.6	81.0	73.5	70.0	70.2	67.2	49.9	49.9	49.7	1.470	1.332	0.919
	+BACON	93.1 +4.5	91.5 +9.4	85.5 +15.4	83.1 +2.5	82.6 +5.6	78.2 +7.9	70.2 +0.2	70.2 +0.6	69.6 +3.4	49.9	49.9 +0.1	50.0 +0.4	1.488 +0.13	1.426 +0.29	1.178 +0.39
PyramidKV	Base	83.4	75.6	60.5	77.7	74.9	66.8	71.1	68.9	65.2	49.9	49.8	49.6	1.147	0.993	0.600
	+MixKV	85.0	77.5	61.3	80.9	77.2	69.4	71.0	71.1	66.4	49.9	49.8	49.6	1.383	1.145	0.662
	+BACON	92.3 +8.9	89.3 +13.7	79.2 +18.7	82.5 +4.8	80.0 +5.1	75.1 +8.3	71.2 +0.1	70.6 +1.7	69.2 +4.0	49.9	49.9 +0.1	49.8 +0.2	1.461 +0.31	1.344 +0.35	1.073 +0.47
AdaKV	Base	88.4	81.3	69.4	80.5	75.9	70.8	69.8	69.6	66.6	49.9	49.7	49.6	1.300	1.099	0.771
	+MixKV	91.4	82.7	70.7	82.5	79.1	72.6	70.2	70.2	67.8	49.9	49.9	49.6	1.454	1.271	0.874
	+BACON	93.0 +4.6	91.1 +9.8	86.2 +16.8	82.8 +2.3	81.2 +5.3	78.5 +7.7	70.2 +0.4	70.2 +0.6	69.6 +3.0	49.9	49.8 +0.1	49.8 +0.2	1.473 +0.17	1.371 +0.27	1.144 +0.37
SparseMM	Base	93.1	91.4	87.3	82.6	82.1	76.9	70.2	70.0	69.6	49.8	49.8	49.6	1.481	1.427	1.044
	+MixKV	93.9	92.9	88.6	82.5	82.5	80.9	69.6	69.8	70.8	49.8	49.8	49.7	1.480	1.456	1.303
	+BACON	93.8 +0.7	93.2 +1.8	92.0 +4.7	82.6	82.4 +0.3	81.6 +4.7	70.6 +0.4	70.4 +0.4	70.2 +0.6	49.9 +0.1	49.8	49.8 +0.2	1.506 +0.03	1.511 +0.08	1.431 +0.39

Cross-Model — PyramidKV at budget 64

BACON generalizes from 7B MLLMs to InternVL3-8B and the 30B-scale MoE Qwen3-VL-30B-A3B.

Model	Variant	DocVQA	TextVQA	ChartQA	MMMU	TextCaps
LLaVA-NeXT-Mistral-7B	Base	43.8	55.7	38.6	34.7	0.436
	+MixKV	45.6	57.8	39.1	34.7	0.505
	+BACON	52.4 +8.6	59.8 +4.1	39.9 +1.3	34.8 +0.1	0.505 +0.07
Qwen2-VL-7B	Base	60.5	66.8	65.2	49.6	0.600
	+MixKV	61.3	69.4	66.4	49.6	0.662
	+BACON	79.2 +18.7	75.1 +8.3	69.2 +4.0	49.8 +0.2	1.073 +0.47
InternVL3-8B	Base	69.2	68.8	71.1	55.1	0.688
	+MixKV	69.4	68.9	71.7	55.2	0.719
	+BACON	80.7 +11.5	74.4 +5.6	74.3 +3.2	55.3 +0.2	0.782 +0.09
Qwen3-VL-30B-A3B	Base	74.4	73.2	68.5	51.78	0.266
	+MixKV	76.3	77.2	71.8	52.11	0.370
	+BACON	87.2 +12.8	79.3 +6.1	73.2 +4.7	52.00 +0.22	0.387 +0.12

Video Understanding — Qwen2-VL-7B

VATEX captioning (CIDEr / BLEU-4) and NextQA (WUPS). Best per column in green bold.

Method	Variant	VATEX CIDEr			VATEX BLEU-4			NextQA WUPS
Method	Variant	512	256	128	512	256	128	512	256	128
SnapKV	Base	48.14	46.51	46.27	21.22	20.60	20.26	25.97	25.69	25.84
	+MixKV	48.55	47.68	45.95	21.34	20.82	20.32	25.99	25.93	25.60
	+BACON	48.67	48.02	46.02	21.38	21.26	20.38	26.15	25.94	26.02
AdaKV	Base	48.20	46.20	45.37	21.55	20.43	20.28	25.72	25.70	25.65
	+MixKV	48.68	47.46	45.39	21.22	20.78	20.34	25.99	26.01	25.86
	+BACON	48.82	47.85	45.33	21.55	21.24	20.54	25.96	25.95	25.86
PyramidKV	Base	46.09	46.03	44.36	20.58	20.29	19.26	25.88	25.69	25.63
	+MixKV	46.13	45.67	44.50	20.48	20.29	19.55	25.87	25.72	25.52
	+BACON	46.57	46.22	45.70	20.81	20.25	19.70	26.04	25.80	25.65
SparseMM	Base	47.91	47.16	46.12	20.79	20.24	19.77	26.37	25.94	25.71
	+MixKV	48.65	47.44	45.99	20.99	20.54	19.82	26.13	25.98	25.83
	+BACON	48.90	47.57	46.38	21.28	20.81	20.03	26.33	26.17	26.07

GUI Grounding — ScreenSpot (Qwen2-VL-7B)

Average accuracy across mobile / desktop / web text and icon subsets.

Method	Variant	Mobile Text		Mobile Icon		Desktop Text		Desktop Icon		Web Text		Web Icon		Average
Method	Variant	128	64	128	64	128	64	128	64	128	64	128	64	128	64
SnapKV	Base	24.5	15.4	10.5	4.8	19.1	9.3	4.3	4.3	5.7	6.5	6.8	5.8	11.8	7.7
	+MixKV	24.9	15.8	10.8	4.8	19.6	10.8	4.3	4.3	6.1	6.5	6.8	6.3	12.1	8.1
	+BACON	24.9	15.8	10.7	5.7	21.1	13.7	4.3	5.7	7.0	6.4	8.2	6.3	12.7	9.0
AdaKV	Base	26.1	15.4	11.8	4.2	19.1	11.3	5.7	5.0	4.8	6.5	6.3	5.8	12.3	8.0
	+MixKV	26.6	14.6	11.3	4.8	20.1	11.3	5.7	5.0	5.7	5.7	6.3	6.3	12.6	8.0
	+BACON	26.6	15.4	12.0	5.0	19.5	13.9	5.7	5.0	5.7	6.7	6.8	6.3	12.7	8.7
PyramidKV	Base	24.5	13.9	8.2	6.6	20.1	9.8	3.6	5.0	6.1	6.1	6.2	5.3	11.5	7.8
	+MixKV	24.5	13.2	8.7	7.0	19.1	10.3	3.6	5.0	6.5	6.1	6.6	5.8	11.5	7.9
	+BACON	24.8	13.5	8.9	6.7	20.1	10.3	4.3	5.7	7.8	6.2	6.3	5.8	12.0	8.0
SparseMM	Base	22.7	15.8	9.2	4.4	18.6	9.8	4.6	4.3	7.0	4.5	8.7	5.8	11.9	7.4
	+MixKV	21.5	14.6	10.2	4.4	17.0	10.3	2.9	4.3	7.4	3.9	8.2	5.8	11.2	7.2
	+BACON	22.7	16.9	10.2	4.5	19.6	10.3	4.9	5.0	7.6	5.2	8.3	8.2	12.2	8.4

Long-Context Text — LongBench (Mistral-7B-Instruct-v0.2)

Category averages and overall average; Full-KV reference 41.76.

Budget	Method	Single-Doc QA	Multi-Doc QA	Summarization	Few-shot	Synthetic	Code	Avg.
1024	SnapKV (Base)	34.38	28.22	25.21	64.94	45.23	46.11	40.06
	+MixKV	34.41	28.22	25.34	66.17	44.53	46.30	40.25
	+BACON	35.49 +1.11	28.56 +0.34	25.69 +0.48	67.00 +2.06	45.29 +0.06	46.44 +0.33	40.85 +0.79
	AdaKV (Base)	34.94	28.94	25.10	65.74	45.52	46.47	40.51
	+MixKV	35.11	28.84	25.47	66.21	44.92	46.40	40.60
	+BACON	35.67 +0.73	29.33 +0.39	25.71 +0.61	66.94 +1.20	45.63 +0.11	46.79 +0.32	41.11 +0.60
	PyramidKV (Base)	33.52	28.13	24.87	65.20	44.70	45.95	39.78
	+MixKV	33.90	28.41	25.58	66.21	43.59	45.80	40.07
	+BACON	34.85 +1.33	28.92 +0.79	26.02 +1.15	66.71 +1.51	44.75 +0.05	46.43 +0.48	40.74 +0.96
512	SnapKV (Base)	33.25	26.82	23.65	64.48	45.15	45.41	39.11
	+MixKV	33.08	27.12	24.40	65.19	45.15	45.61	39.43
	+BACON	34.06 +0.81	27.50 +0.68	24.54 +0.89	66.09 +1.61	45.32 +0.17	45.91 +0.50	39.94 +0.83
	AdaKV (Base)	33.33	27.23	23.80	64.70	45.31	45.86	39.35
	+MixKV	33.52	27.48	24.27	65.30	45.06	46.15	39.63
	+BACON	34.06 +0.73	27.54 +0.31	24.60 +0.80	66.55 +1.85	45.39 +0.08	45.89 +0.03	40.05 +0.70
	PyramidKV (Base)	31.92	26.95	23.39	64.26	44.58	44.45	38.60
	+MixKV	32.09	26.69	23.89	64.88	44.80	44.80	38.86
	+BACON	32.83 +0.91	27.62 +0.67	23.96 +0.57	65.97 +1.71	45.07 +0.49	45.14 +0.69	39.47 +0.87

Category averages were computed from the per-task numbers in the paper; the final column matches the table average.

BibTeX

@article{chen2026bacon,
  title  = {Last But Not Least: Boundary Attention Calibration for Multimodal KV Cache Compression},
  author = {Chen, Tianhao and Wu, Yuheng and Yao, Kelu and Xu, Xiaogang and Hu, Xiaobin and Lee, Dongman},
  year   = {2026},
  eprint = {2606.14782},
  archivePrefix = {arXiv}
}

Last But Not Least: Boundary Attention CalibratiON for Multimodal KV Cache Compression
